SPECIFICATIONS
Brand Name: ANDDEAR
Choice: yes
Communication Mode: Full-Duplex & Half-Duplex
Switch Type: Ethernet
Transmission Rate: 10/100/1000Mbps
semi_Choice: yes
All module products in our store contain connecting lines

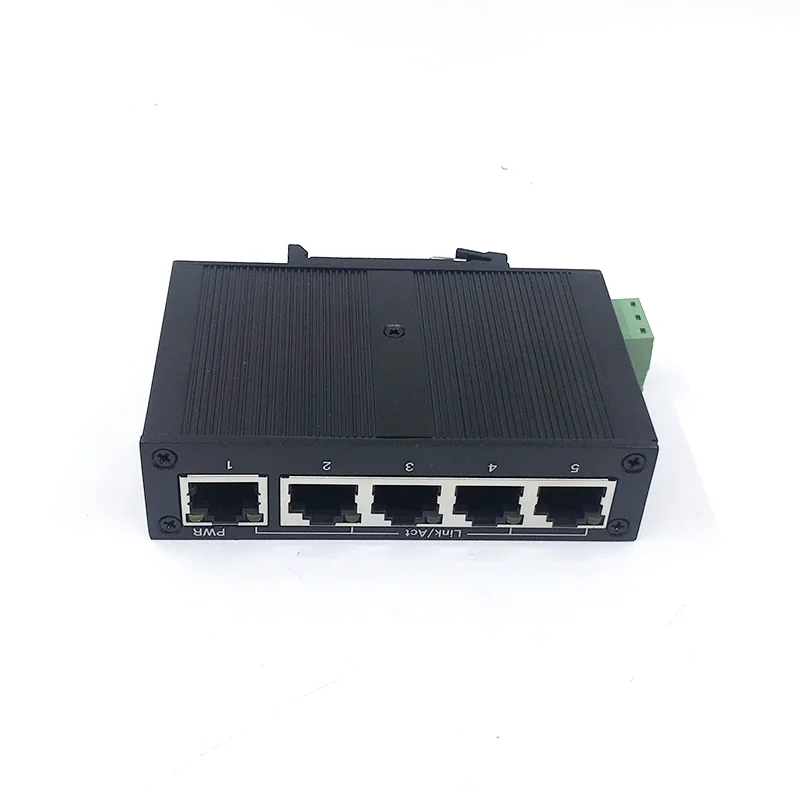

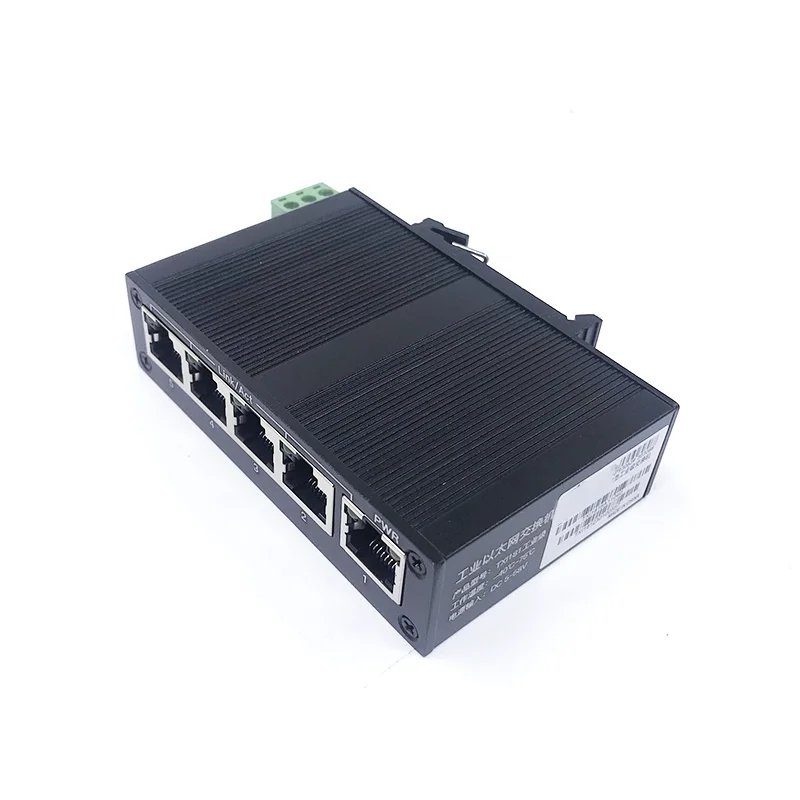

Non-network management 5-port 100M industrial Ethernet switch module
product description:

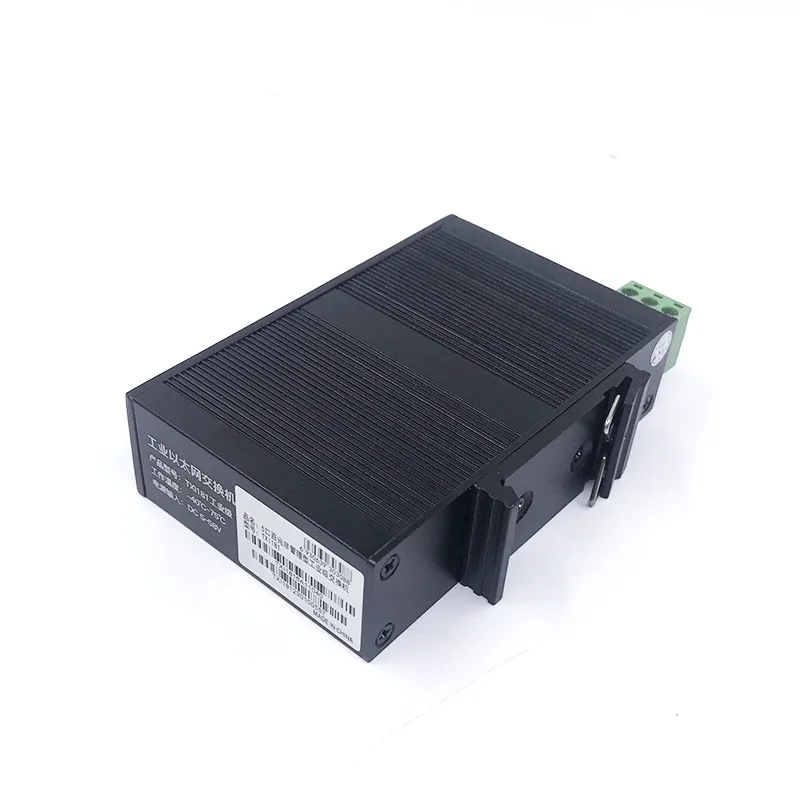

ANDDEAR01 is a 5-port unmanaged industrial Ethernet switch core module that provides 5 10/100M adaptive Ethernet ports, providing DC 5V-58V input positive and negative protection to prevent burnout and support different embedding. System integration

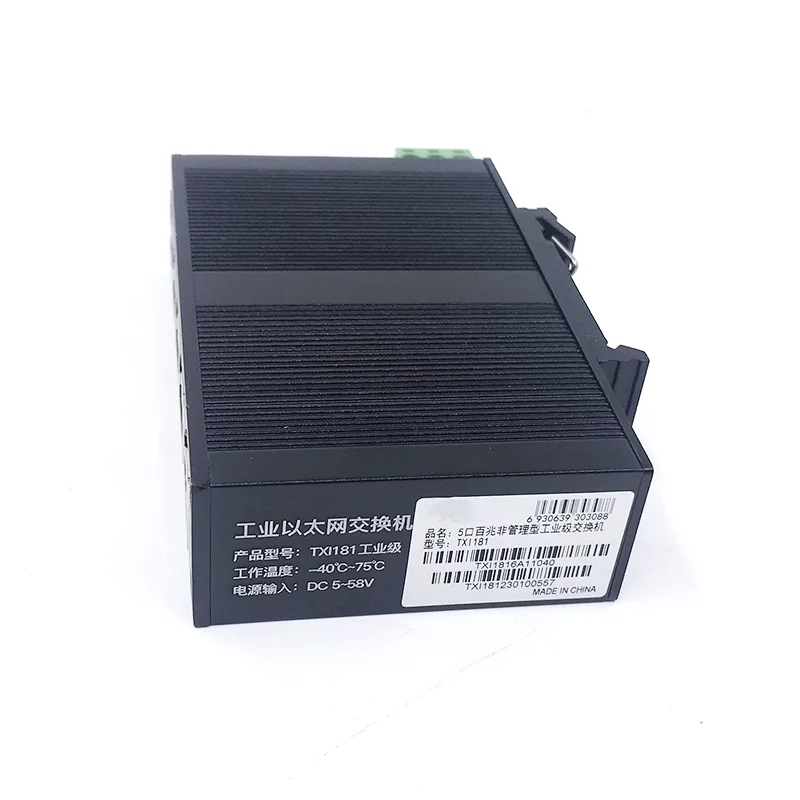

Metal shell, anti-interference, strong heat dissipation, working temperature -40 ° C to 75 ° C.Lightning protection 4KV, anti-static 4KV.
Product Features:
Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards;
5-portindustrial grade chip, which is more stable and stable;
Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard;

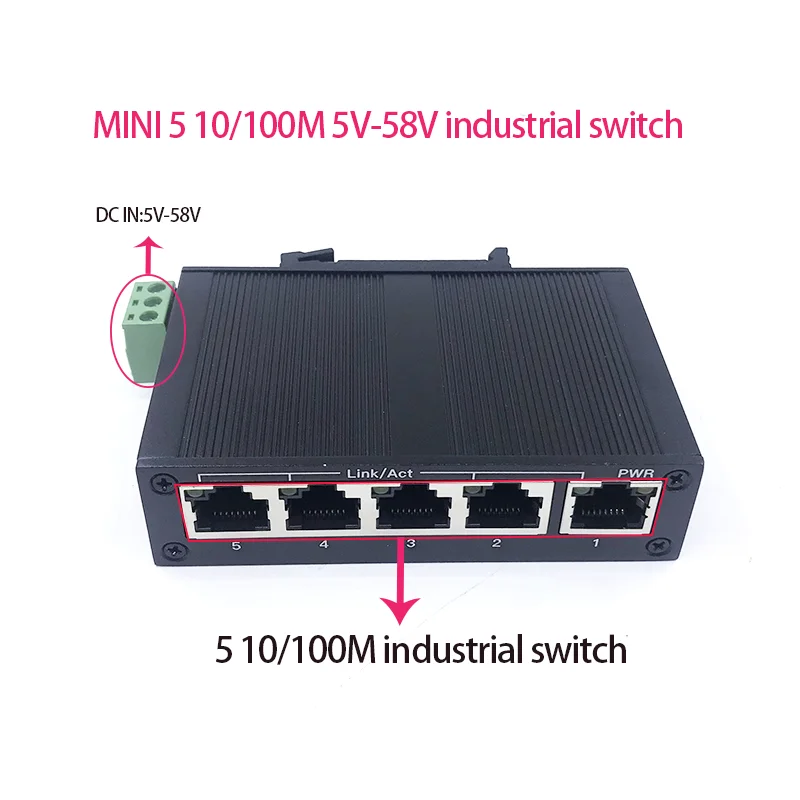

5 10/100M adaptive network ports that support port auto-flip (Auto MDI/MDIX)
Each port supports auto-negotiation and automatically adjusts the transmission mode and transmission rate.
Support MAC address self-learning;
Support full speed forwarding without blocking communication
Dynamic LED indicator, providing simple working status prompts and troubleshooting;
Lightning surge machine static protection; static support 8KV, surge differential mode 2KV, common mode 4KV

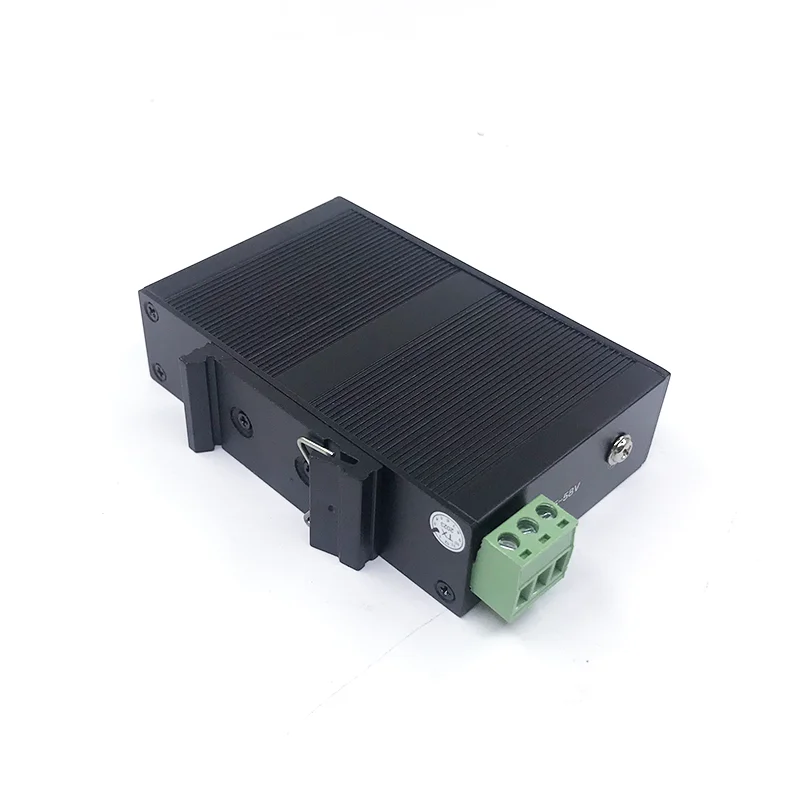

Redundant dual DC power input overload protection, support for positive and negative access

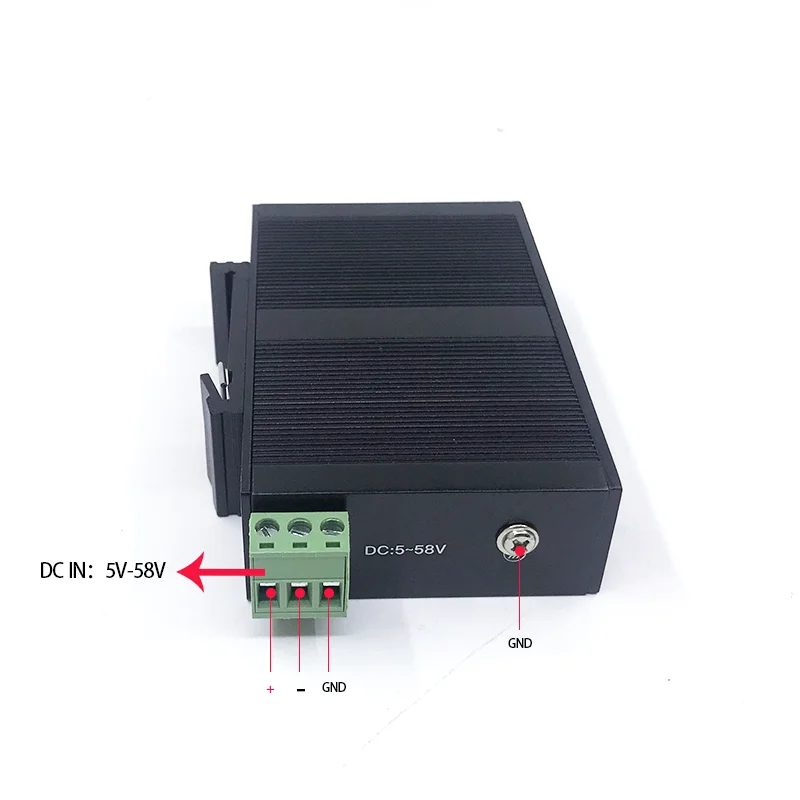

Power supply supports 5V-58V input

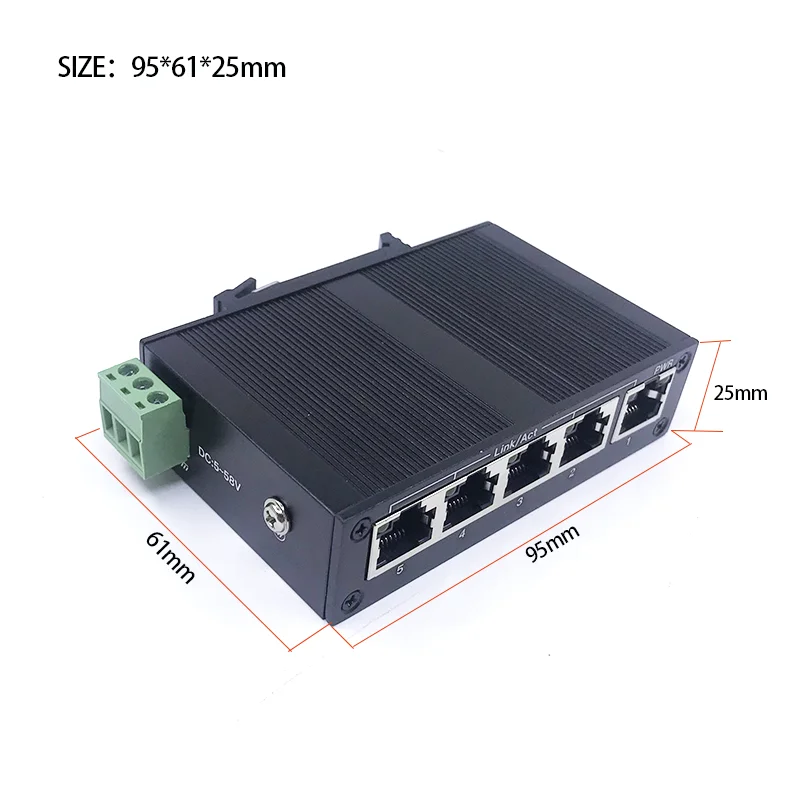

Product design
Product application ScenesThis product is an embedded integrated module for conference room systems,education systems, security systems,industrial computers,robots,gateways,and so on,
