SPECIFICATIONS

Ambient Temperature: -25~+75
Brand Name: GEYA
Certification: CE
Choice: yes
Contact Load: Low Power
Dielectric Strength: Input - output - floor more than2500VAC
Function: DC control AC, AC control AC, DC control DC
Hign-concerned Chemical: None
Load Current: 10A 25A 40A 60A 80A 100A 120A
Model Number: SSR with Radiator
Off Leakage Current: less than 5mA
On Voltage: less than 1.5V
On-off Time: less than 10ms
Origin: Mainland China
Power Source: DC
Product Name: SSR with Radiator Solid State Relay
Protect Feature: Sealed
Theory: Time Relay
Use: General Purpose
Voltage: 24V
is_customized: Yes
semi_Choice: yes

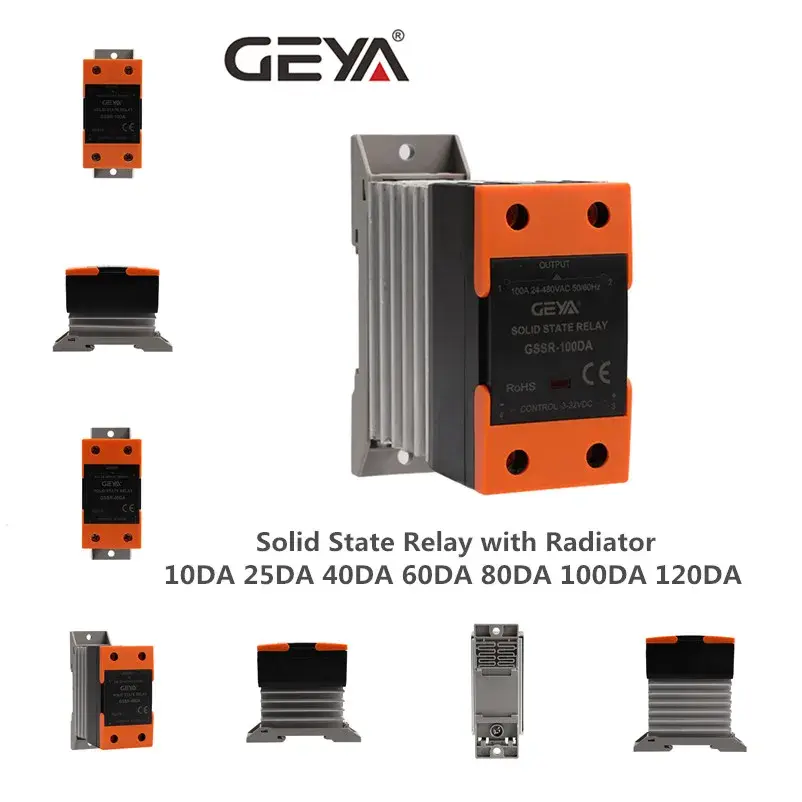

GEYA Solid State Relay with Radiator SSR 10DA 25DA 40DA DC Control AC Single Phase SSR Din Rail Mount Single Phase
SSR-DA = DC TO AC
SSR-DD= DC TO DC
SSR-AA= AC TO AC
Technical Data
Model: GSR2-1 Single Phase
Control: DC control AC
Load Current : 10A 25A 40A 60A 80A 100A 120A
Control Voltage: 3-32VDC
Load Voltage: 24-480VAC
Control Current: DC5mA-25mA
Must Operation Voltage: 2.8VDC
Must Release Voltage : 1.5VDC
Output Voltage: 24-480VAC
Peak Voltage: 800V
Operation Temperature : -20℃ to 75℃
Off-state leakage current: 10-40A -8mA, 60-1200A 2mA
Features
1.Built-in TVS to protect triac.
2.With LED indicator.
3.Zero-cross Or Random turn-on.The default is zero cross SSR.
4.Random turn-on needs to be customized.
Precautions
In the off state, due to the influence of the built-in capacitor of the product, it is not applicable for special scenarios with off-state leakage current ≤ 5MA, please purchase with caution!!!
1.When choosing a SSR,please notice the actual load current and working ambient temperature.
2.Apply heat-radiation s
